Angle / Beveled Washer for cable railing fittings.

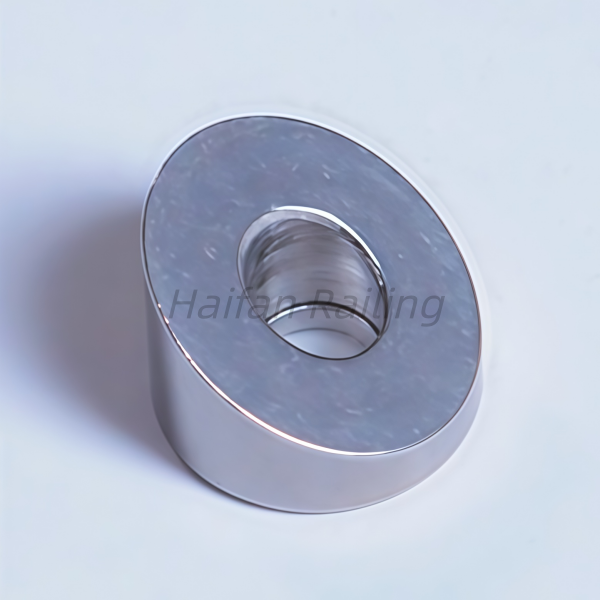

Cable railing angled washers (often called beveled washers) provide a flat bearing surface when tensioning cable line terminations on slanted sections like stairs or ramps. They act as a wedge between the post and the tensioning nut, preventing lateral strain on the cable and keeping the terminal hardware perfectly straight.
Core Function & Sizing
Standard Angle: Most standard staircases utilize a 30-degree or 34-degree angle washer, though specialized setups range anywhere from 20 to 45 degrees.
Material: High-quality washers are made from T316 Marine Grade Stainless Steel to maximize rust and weather resistance for indoor or coastal outdoor decks.

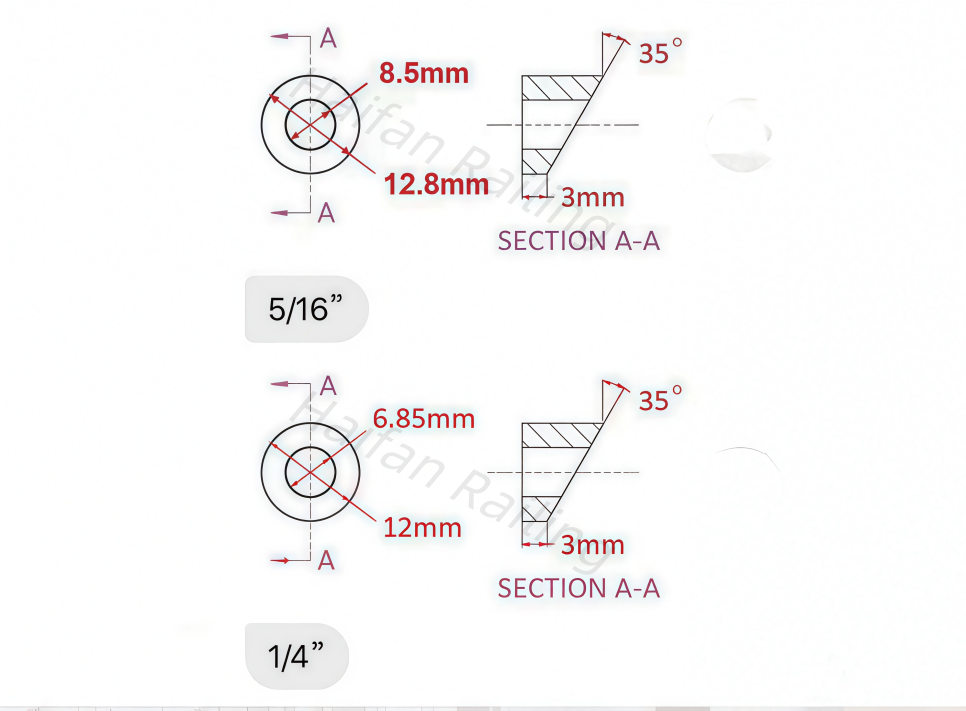

Compatibility: Inside Diameters (ID) typically measure 1/4" (for standard 1/8" and 3/16" threaded terminals) or 3/8" (for thicker fittings and hidden swage studs).
Installation Best Practices

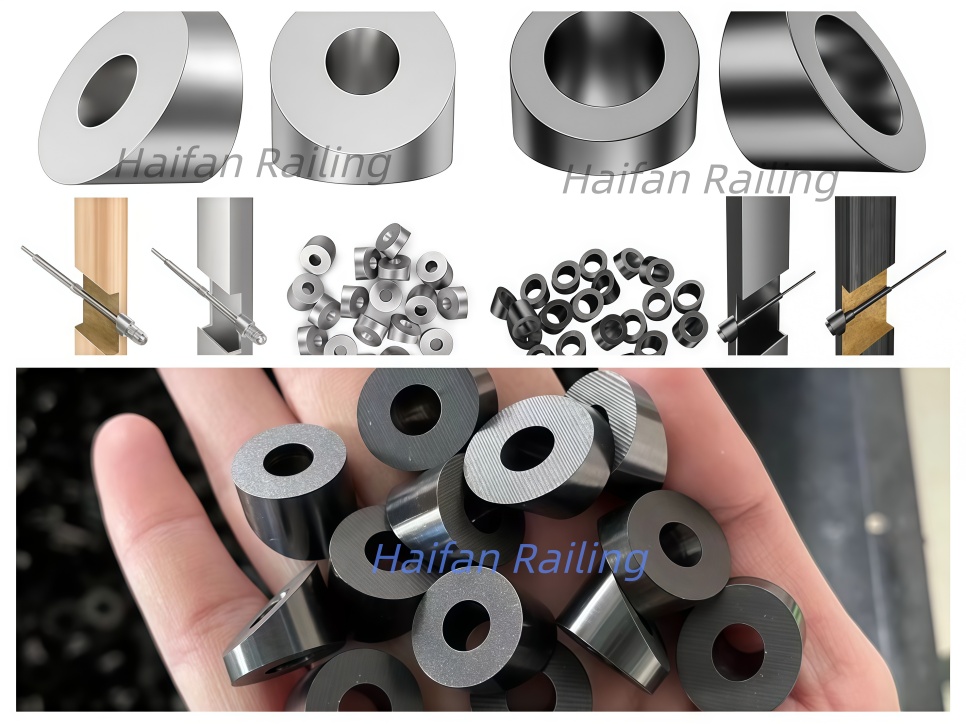

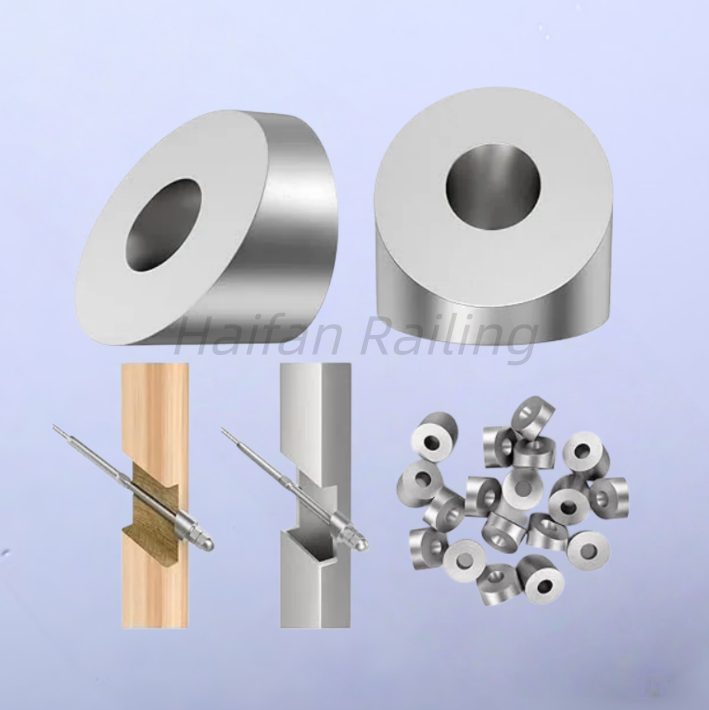

Placement: Position the angled washer on the outside face of your start and end stair posts where the threaded terminal exits at an angle.
Drilling Guard: Ensure the pilot holes drilled through your wood posts are not too large, or the compression tension could pull the narrow end of the washer directly into the wood grain.
Check Your Hardware: Only straight threaded studs and tension receivers require angled washers. Pivoting or adjustable-angle deck kits generally self-align without needing beveled inserts.
To help you find the exact parts for your project, could you share the material of your posts (wood or metal),
the diameter of your cable (e.g., 1/8" or 3/16"), and the approximate slope angle of your stairs?
